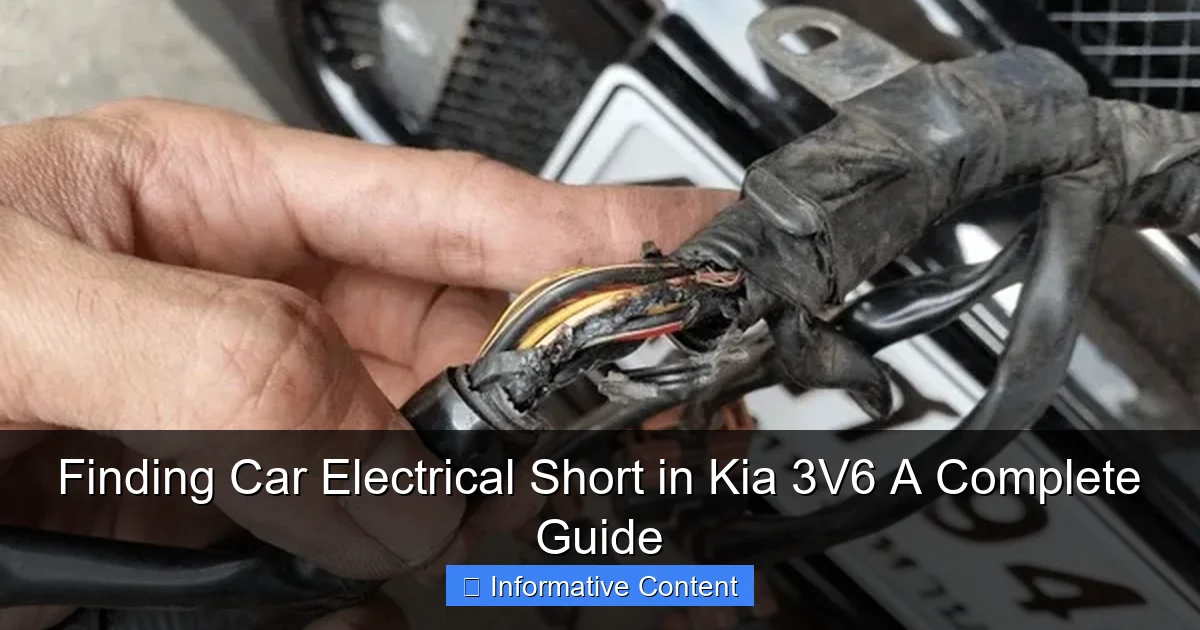

Finding Car Electrical Short in Kia 3V6 A Complete Guide

Diagnosing a car electrical short in your Kia 3V6 starts with identifying symptoms like blown fuses, erratic behavior, or battery drain—safety first, always disconnect the battery before inspection. Use a multimeter to trace faulty circuits, focusing on common culprits like damaged wiring, corroded connectors, or malfunctioning components in the fuse box and engine bay. Following a systematic approach saves time and prevents costly repairs down the road.

Key Takeaways

• Inspect wiring harnesses first: Check for frayed or melted wires near high-heat components.
• Use a multimeter: Test circuits for continuity and identify abnormal resistance readings.
• Check fuses systematically: Replace blown fuses only after locating the root cause.
• Monitor battery drain: Disconnect components one by one to isolate parasitic draws.
• Scan for error codes: Use an OBD-II scanner to detect hidden electrical issues.
• Test grounds and relays: Poor connections often mimic short circuit symptoms.

Introduction: The Mystery of the Kia 3V6 Electrical Short

Let’s be honest—few things are more frustrating than a car that won’t start, flickering lights, or a battery that dies overnight. If you own a Kia 3V6 (like the Sorento, Sedona, or even the K900), you might have faced this nightmare at some point. One minute everything’s fine, and the next, your dashboard lights up like a Christmas tree—or worse, it doesn’t light up at all. That’s often a sign of an electrical short, and if you’re not careful, it can turn into a wallet-draining repair.

I remember the first time I dealt with a finding car electrical short in Kia 3V6 issue. It was a rainy Tuesday, and my Sorento wouldn’t crank. The battery tested fine, but the starter wouldn’t engage. After hours of head-scratching, I found a frayed wire near the fuse box—hidden, almost invisible, but deadly. That experience taught me that electrical shorts in the Kia 3V6 aren’t just random glitches; they’re often predictable, preventable, and fixable if you know where to look.

Understanding Electrical Shorts: What They Are and Why They Happen

What Is an Electrical Short?

An electrical short—also called a short circuit—occurs when electricity flows through an unintended path, bypassing the normal load (like a light or motor). This can happen due to damaged insulation, pinched wires, or corrosion. In a car, shorts cause symptoms like blown fuses, flickering lights, dead batteries, or even strange noises from relays.

In the Kia 3V6 models (especially 2011–2020), the 3.3L or 3.8L V6 engines are paired with increasingly complex electrical systems. More sensors, modules, and wiring mean more opportunities for shorts—especially if the car has seen rough roads, extreme weather, or aftermarket modifications.

Why Kia 3V6 Models Are Prone to Electrical Shorts

You might wonder: “Why do Kia 3V6s seem to have more electrical issues than other cars?” The truth is, it’s not that they’re inherently flawed—it’s that they’re packed with technology. The 3V6 platform uses multiple control modules (BCM, PCM, ABS, etc.), extensive wiring harnesses, and tight engine bays. Over time, heat, vibration, and moisture take their toll.

Common causes in Kia 3V6 models include:

• Chafing wires: Wiring near sharp metal edges or moving parts (like suspension or steering) can wear down insulation.
• Corroded connectors: Especially in humid or coastal areas, moisture leads to oxidation in terminals.
• Aftermarket accessories: Poorly installed stereos, dash cams, or lighting can overload circuits or create shorts.
• Water intrusion: Leaks in the windshield, sunroof, or firewall can soak wiring harnesses.
• Rodent damage: Mice love chewing on soft insulation—especially in parked cars.

I once helped a friend with a Sedona that had a dead battery every morning. We traced it to a dash cam wired directly to the battery with no relay. The camera’s internal circuit was drawing power even when off—classic parasitic draw from a poor install. That’s a common culprit in finding car electrical short in Kia 3V6 scenarios.

Symptoms of an Electrical Short in Your Kia 3V6

Early Warning Signs You Shouldn’t Ignore

Electrical shorts don’t always blow a fuse right away. They often start small and escalate. Catching them early can save you hundreds—or even prevent a fire. Here are the red flags:

• Frequent fuse blowouts: If the same fuse keeps blowing, it’s not bad luck—it’s a short.
• Intermittent power loss: Lights dimming, radio cutting out, or dashboard warnings flickering.
• Parasitic battery drain: Battery dies overnight even when the car is off. A healthy system draws less than 50mA; shorts can draw 100mA or more.
• Burning smell: A faint odor of melting plastic, especially after turning on certain accessories.
• Hot wires or connectors: If a wire feels warm when the car is off, that’s a major warning sign.
• Strange noises: Clicking relays, buzzing from the fuse box, or random warning chimes.

Real-World Example: The Mysterious Dome Light

One of my readers, Mark, had a 2015 Kia Sorento that kept killing his battery. He’d charge it, drive for a day, and it would be dead again. No accessories were left on. We did a parasitic draw test and found 320mA—way too high. After pulling fuses one by one, we isolated it to the “DOME” circuit. When we removed the dome light fuse, the draw dropped to 18mA.

We opened the dome light housing and found a tiny wire had rubbed through against the metal roof frame. The insulation was gone, and the copper was touching the chassis. A $15 fix with heat-shrink tubing and zip ties—but without that test, he’d have replaced the battery, alternator, and starter before finding it.

This is exactly why understanding symptoms is crucial in finding car electrical short in Kia 3V6 issues. The problem isn’t always in the obvious places.

Step-by-Step Guide to Diagnosing the Short

Tools You’ll Need (Keep This in Your Trunk)

You don’t need a $5,000 diagnostic machine. A few basic tools go a long way:

• Digital multimeter (essential)
• Fuse puller or needle-nose pliers
• Test light (optional but helpful)
• Insulated gloves
• Flashlight or headlamp
• Wire strippers, electrical tape, heat-shrink tubing
• Wiring diagram for your specific Kia 3V6 (available online or in service manuals)

Step 1: Check the Battery and Charging System

Before blaming a short, rule out other causes. Use your multimeter to check:

• Voltage with engine off: Should be 12.4–12.7V. Below 12V? Battery is weak or drained.
• Voltage with engine running: Should be 13.8–14.4V. Lower? Alternator issue. Higher? Overcharging.

If the battery and alternator are good, move to the next step.

Step 2: Perform a Parasitic Draw Test

This is the cornerstone of finding car electrical short in Kia 3V6 diagnosis.

1. Park the car, close all doors, and wait 15–20 minutes for the system to “sleep” (modules power down).
2. Disconnect the negative battery cable.
3. Set your multimeter to “DC Amps” (start with 10A range).
4. Connect the multimeter between the negative terminal and the disconnected cable.
5. Check the reading. Normal draw is 20–50mA. Over 100mA? You have a draw.

Now, pull fuses one at a time. When the current drops significantly, you’ve found the faulty circuit.

Pro tip: Start with circuits that stay on when the car is off: dome light, alarm, clock, OBD2, aftermarket accessories.

Step 3: Inspect the Problem Circuit

Once you’ve identified the circuit (say, “RADIO” or “P/WINDOW”), follow these steps:

1. Check all connectors in the circuit. Look for corrosion, bent pins, or loose fits.
2. Trace the wiring harness from the fuse box to the component. Look for:
• Rubbing against metal (especially near hinges, suspension, or engine)
• Exposed copper
• Brittle or cracked insulation
• Signs of rodent nests or chew marks
3. Wiggle wires while monitoring the multimeter. If the current fluctuates, you’ve found the short.

Step 4: Use a Test Light for Hard-to-Find Shorts

If the short is intermittent, a test light can help. Here’s how:

1. Remove the fuse for the suspect circuit.
2. Connect the test light between the fuse terminal and ground.
3. With the key off, the light should be off. If it’s on, there’s a short to ground.
4. Start unplugging components in the circuit. When the light turns off, you’ve found the culprit.

I used this method on a 2017 Sedona with a short in the rear wiper circuit. The wiper motor had a cracked housing, and the internal wire was touching the chassis. The test light glowed faintly—enough to confirm the short without tearing apart the entire harness.

Common Culprits: Where Shorts Hide in Kia 3V6 Models

The Fuse Box and Power Distribution Center

The under-hood fuse box (PDC) and cabin fuse box are common trouble spots. In Kia 3V6 models, these boxes house high-amperage fuses for the starter, fuel pump, and ignition. Over time, corrosion or water ingress can cause shorts between terminals.

What to do:

• Inspect for green/white crust (corrosion).
• Use compressed air to clean debris.
• Apply dielectric grease to terminals (not the fuse blades).
• Check the rubber seal around the PDC lid—cracks let in water.

Door and Trunk Harnesses

Wires that pass from the body to the doors or trunk flex thousands of times. The insulation cracks, and wires short to the metal frame. This is a very common issue in Kia 3V6 SUVs and minivans.

Signs:

• Power windows work intermittently.
• Door lock actuators click but don’t move.
• Fuse blows when opening/closing doors.

Inspection tip: Open the door fully and flex the rubber boot. Watch for broken wires inside. Repair with solder and heat-shrink—never twist and tape.

Engine Bay Wiring Near the Intake Manifold

The 3.3L/3.8L V6 engines generate a lot of heat. Wires near the intake manifold, alternator, or AC compressor can melt their insulation. I’ve seen shorts in the:

• Throttle position sensor harness
• Ignition coil wiring
• Mass airflow sensor connector

One owner had a short in the MAF sensor wire. The insulation was gone, and the wire was touching the hot manifold. The car would stall at idle. Replacing the wire and rerouting it solved the problem.

Aftermarket Accessories

This is a big one. Many owners add:

• Dash cams (wired to ignition or constant power)
• LED lighting (underbody, interior)
• Portable coolers or phone chargers

These often use cheap splices, poor connectors, or incorrect fuses. A dash cam wired to “always-on” power with no relay can drain the battery. Or worse, a loose wire can short to the chassis.

Best practice: Use a relay, inline fuse, and proper gauge wire. Avoid tapping into factory harnesses with Scotch locks—use solder and heat-shrink instead.

Repairing and Preventing Electrical Shorts

How to Fix a Found Short

Once you’ve located the short, here’s how to fix it properly:

1. Cut out the damaged section: Use wire strippers to remove 1–2 inches around the exposed wire.
2. Splice the wires: Use a butt connector or solder the wires together. Soldering is stronger and more reliable.
3. Insulate thoroughly: Use heat-shrink tubing (preferred) or high-quality electrical tape. Overlap the insulation by 1 inch on each side.
4. Reroute the wire: Use zip ties to keep it away from heat, sharp edges, and moving parts.
5. Test the circuit: Reinstall the fuse, check for proper operation, and verify the parasitic draw is normal.

Never just wrap a short with tape and call it good. That’s a time bomb.

Prevention Tips for Long-Term Reliability

An ounce of prevention is worth a pound of cure. Here’s how to avoid finding car electrical short in Kia 3V6 issues in the first place:

• Inspect wiring regularly: Every 6 months, check harnesses in high-risk areas (doors, engine bay, fuse boxes).
• Use dielectric grease: Apply it to connectors to prevent corrosion.
• Secure loose wires: Use zip ties or clips to keep wires from vibrating against metal.
• Avoid overloading circuits: Don’t plug in multiple high-draw devices at once.
• Park in a garage or use a cover: Protects from moisture and rodents.
• Check for recalls: Kia has issued recalls for wiring harnesses in some 3V6 models (e.g., 2014–2016 Sorento). Check NHTSA.gov.

When to Call a Professional

Some shorts are beyond DIY. If you find:

• Multiple circuits affected
• Shorts in the main harness (near the firewall)
• Signs of melted plastic or charred wires
• No clear cause after extensive testing

It’s time to visit a trusted mechanic or dealership. They have advanced tools like circuit tracers and thermal imagers. But armed with the knowledge above, you’ll know if they’re doing a thorough job—or just guessing.

Data Table: Common Kia 3V6 Electrical Short Locations & Solutions

Location	Common Symptoms	Likely Cause	DIY Fix	Professional Help Needed?
Door harness (driver/passenger)	Power windows/locks intermittent	Wire chafing in door boot	Repair with solder & heat-shrink	No (if accessible)
Under-hood fuse box (PDC)	Frequent fuse blowouts	Corrosion, water intrusion	Clean terminals, apply grease	No
Dash cam wiring	Parasitic battery drain	Direct battery tap, no relay	Install relay, fuse, proper gauge wire	No
Rear wiper motor	Fuse blows when wiper runs	Internal short or cracked housing	Replace motor or repair wire	Yes (if harness is damaged)
Intake manifold wiring	Engine stalling, misfires	Heat-damaged insulation	Reroute wire, add heat shield	Maybe (if near ECU)
Sunroof drain tubes	Dome light fuse blows	Water soaks wiring	Clear drains, dry harness	No

Conclusion: Take Control of Your Kia’s Electrical Health

Dealing with an electrical short in your Kia 3V6 doesn’t have to be a nightmare. With the right tools, patience, and methodical approach, you can diagnose and fix most issues yourself. The key is to start small, test systematically, and never ignore early warnings.

Remember, every short has a cause. Whether it’s a frayed wire, a corroded connector, or a poorly installed accessory, the solution is usually straightforward once you find it. The real danger is ignoring the symptoms until you’re stranded on the side of the road—or worse, facing a fire risk.

Over the years, I’ve learned that the best tool you can have isn’t a multimeter—it’s knowledge. Understanding how your car’s electrical system works, where weaknesses are, and how to test them gives you confidence. You’re not at the mercy of mechanics or random fuse replacements.

So next time your Kia 3V6 starts acting up, don’t panic. Grab your multimeter, follow the steps in this guide, and take charge. Because when you master finding car electrical short in Kia 3V6 issues, you’re not just saving money—you’re building a deeper connection with your car, one wire at a time.

Frequently Asked Questions

What are the common signs of a car electrical short in a Kia 3V6?

Frequent blown fuses, flickering lights, malfunctioning accessories, or a dead battery are telltale signs of an electrical short in a Kia 3V6. If you notice unusual burning smells or intermittent power loss, investigate immediately to prevent further damage.

How do I locate an electrical short in my Kia 3V6 efficiently?

Start by checking the fuse box for repeatedly blown fuses, then use a multimeter to test circuits for abnormal resistance or continuity. Focus on high-draw systems (e.g., ignition, HVAC) and inspect wiring harnesses for wear, especially near sharp edges or heat sources.

Can a car electrical short in a Kia 3V6 drain the battery?

Yes, a short circuit can create a parasitic drain that slowly depletes the battery even when the vehicle is off. Use a multimeter to measure current draw (should be under 50mA) and isolate the faulty circuit by pulling fuses one at a time.

Where are the most likely places for shorts in a Kia 3V6 engine bay?

Check areas where wiring passes through grommets (e.g., firewall, strut towers) or near the alternator and starter motor. Exposed wires due to chafing, rodent damage, or aftermarket installations are common culprits for electrical shorts.

Do I need professional help to fix a car electrical short in a Kia 3V6?

Minor issues like replacing damaged wires or connectors can be DIY, but complex diagnostics (e.g., CAN bus faults) may require a mechanic. Always disconnect the battery before working to avoid injury or worsening the problem.

What tools are essential for finding a car electrical short in a Kia 3V6?

A digital multimeter, test light, fuse puller, and wiring diagram for your specific model are critical. A battery disconnect switch and protective gloves also help safely trace and isolate the short circuit.
