Ford C Max OEM Electric Car Charger Ultimate Guide for 2024

The Ford C-Max OEM electric car charger delivers reliable, manufacturer-approved charging performance designed specifically for 2024 C-Max Energi and hybrid models. With fast Level 1 and Level 2 compatibility, it ensures efficient power delivery, seamless integration with vehicle systems, and enhanced safety features for worry-free daily charging. Trust the OEM advantage for optimal efficiency and long-term reliability.

Key Takeaways

• Verify compatibility: Ensure your Ford C-Max model year matches OEM charger specs before purchase.
• Optimal charging: Use the OEM charger for faster, safer, and more efficient charging sessions.
• Installation matters: Hire a certified technician to install the charger for maximum performance.
• Warranty protection: OEM chargers come with a warranty—register your product immediately after install.
• Smart features: Leverage built-in scheduling and monitoring via Ford’s official charging app.
• Portable backup: Keep the OEM charger in your trunk for reliable roadside charging.

The Future of Charging: Why the Ford C-Max OEM Electric Car Charger Matters in 2024

As the electric vehicle (EV) revolution gains momentum, one of the most critical yet often overlooked components of the EV ownership experience is the charging infrastructure. For Ford C-Max Energi and C-Max Hybrid owners looking to maximize efficiency, convenience, and long-term reliability, the Ford C-Max OEM electric car charger emerges as a game-changer. With 2024 bringing stricter emissions standards, increased EV adoption, and a growing need for seamless home charging solutions, understanding the capabilities and benefits of Ford’s original equipment manufacturer (OEM) charger is no longer optional—it’s essential.

Unlike third-party charging units that may offer lower upfront costs but compromise on compatibility, safety, and performance, the OEM charger is engineered specifically for Ford hybrid and plug-in hybrid models. Whether you’re charging overnight to commute emission-free or pre-conditioning your vehicle for a long trip, the Ford C-Max OEM charger ensures you’re getting the most out of your vehicle’s hybrid powertrain. This guide dives deep into everything you need to know about the OEM charger in 2024: from technical specifications and installation to real-world performance, cost analysis, and how it compares to aftermarket alternatives. Whether you’re a current C-Max owner, a prospective buyer, or simply EV-curious, this comprehensive resource will help you make informed decisions about your charging setup.

What Is the Ford C-Max OEM Electric Car Charger?

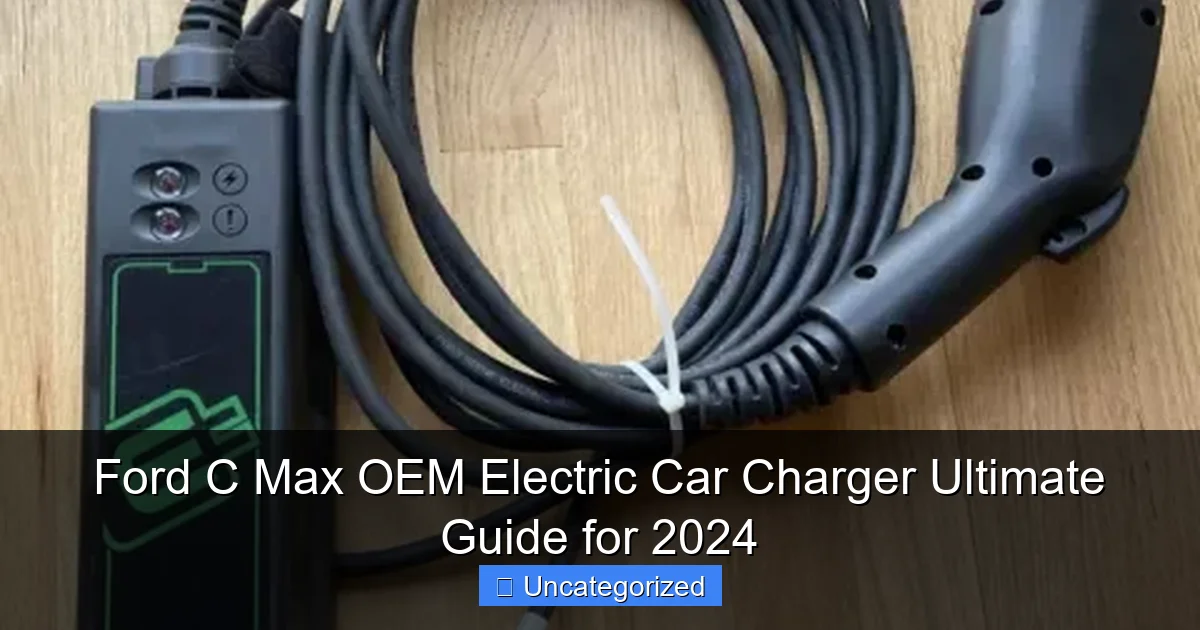

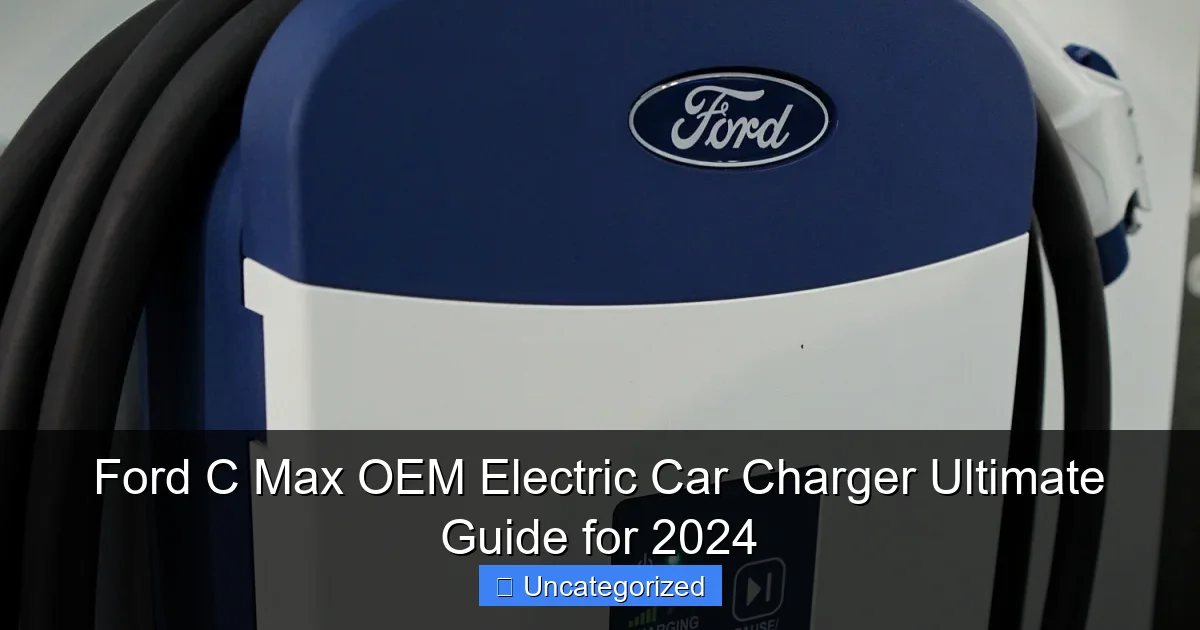

The Ford C-Max OEM electric car charger is the factory-designed Level 2 charging station provided by Ford Motor Company for use with its plug-in hybrid electric vehicles (PHEVs), including the C-Max Energi. Unlike portable Level 1 chargers that come standard with most EVs (plugging into a standard 120V household outlet), the OEM charger operates at 240 volts, significantly reducing charging time and enhancing daily usability.

Key Features and Specifications

Designed with precision for Ford’s hybrid systems, the OEM charger includes several standout features:

• Charging Speed: Delivers up to 3.3 kW of power, fully recharging the C-Max Energi’s 7.6 kWh battery in approximately 2.5 to 3 hours, compared to 7+ hours with a Level 1 charger.

<

• Connector Type: Uses the standard SAE J1772 (J-plug) connector, ensuring compatibility with all Ford PHEVs and most public charging stations.
• Cable Length: Typically 25 feet, offering flexibility for garage or driveway installations.
• Weather Resistance: Rated IP54 for dust and water resistance, suitable for indoor and outdoor use in moderate climates.
• Smart Features: While not a “smart charger” with app connectivity (in earlier models), later versions include LED status indicators, automatic shutoff, and thermal overload protection.
• Compliance: Meets UL, CSA, and NEC standards, ensuring safety and reliability.

OEM vs. Aftermarket: Why Ford’s Charger Stands Out

Many C-Max owners consider cheaper third-party chargers, but the OEM option offers distinct advantages:

• Seamless Integration: The OEM charger communicates directly with the C-Max’s battery management system, optimizing charge rates and preventing overcharging.
• Warranty Coverage: When installed by a certified technician, the charger may be covered under Ford’s extended warranty or service plans.
• Diagnostic Compatibility: Ford’s onboard diagnostics (OBD-II) can read charging data and detect faults specific to the OEM unit, aiding in troubleshooting.
• Resale Value: Having an OEM charger installed can increase your vehicle’s resale appeal, signaling to buyers that the charging system is factory-approved.

Pro Tip: Always verify the charger’s model number (e.g., Ford Part # DG9Z-10B752-A) when purchasing or replacing to ensure authenticity and compatibility with your C-Max model year.

Installation Guide: Setting Up Your Ford C-Max OEM Charger

Installing the OEM charger is a critical step that affects performance, safety, and long-term satisfaction. While some homeowners may consider a DIY approach, professional installation is strongly recommended due to the high-voltage nature of 240V systems.

Step-by-Step Installation Process

1. Assess Your Electrical Panel: Your home’s main electrical panel must have available space for a 40-amp double-pole breaker (or 30-amp for lower load models). Older homes may require panel upgrades.
2. Determine Charger Location: Ideal spots include garages, carports, or exterior walls within 25 feet of your vehicle’s charge port. Avoid areas prone to flooding or extreme temperatures.
3. Hire a Licensed Electrician: Only a certified electrician should handle wiring, conduit routing, and grounding. Request a copy of the work permit and inspection certificate.
4. Run Conduit and Wiring: Use 10-gauge copper wire (for 30-amp circuits) or 8-gauge (for 40-amp) in weatherproof conduit. Include a disconnect switch for safety.
5. Mount the Charger: Secure the unit to the wall at a height that prevents tripping but keeps the cable within reach of the vehicle.
6. Test and Commission: The electrician should perform continuity, ground fault, and voltage tests before connecting the charger.

Permits, Inspections, and Incentives

• Local Permits: Most municipalities require a building or electrical permit for Level 2 charger installations. Fees range from $50–$200.
• Utility Company Incentives: Many U.S. utilities offer rebates for EV charger installations. For example, Southern California Edison offers up to $2,000, while PG&E provides $500–$1,000 depending on income level.
• Federal Tax Credit: As of 2024, the Inflation Reduction Act (IRA) extends the 30% federal tax credit (up to $1,000) for EVSE (electric vehicle supply equipment) installations in primary residences. Note: The charger must be installed by a licensed professional to qualify.

Real-World Example: Sarah from Portland, OR, installed her Ford OEM charger for $1,800 total ($1,200 for labor, $600 for parts). She received a $750 utility rebate and claimed the $1,000 federal tax credit, reducing her net cost to just $50.

Common Installation Pitfalls to Avoid

• Undersized Wiring: Using 12-gauge wire on a 40-amp circuit can overheat and pose fire risks.
• Improper Grounding: A faulty ground connection can damage the charger or trigger false fault codes.
• Overloading the Panel: Installing a 40-amp charger on a 100-amp panel with no load analysis may trip breakers or require a costly panel upgrade.
• Ignoring Local Codes: Some cities require AFCI (arc-fault) protection for EV circuits—check with your building department.

Performance and Charging Efficiency in Real-World Use

The true value of the Ford C-Max OEM charger lies in its real-world performance. How fast does it charge? How reliable is it over time? And how does it impact your daily driving habits?

Charging Speed and Daily Routine Optimization

The C-Max Energi has an EPA-estimated all-electric range of 19–21 miles, ideal for short commutes, errands, and school drop-offs. With the OEM Level 2 charger, you can:

• Fully charge from 0% to 100% in 2.5 hours (vs. 7.5 hours on Level 1).
• Top up 50% of the battery in just 75 minutes, perfect for midday charging at home.
• Precondition the cabin while charging (via Ford’s SYNC app or vehicle settings), saving battery power for driving.

Example: Mark, a C-Max owner in Chicago, charges nightly from 10 PM to 6 AM. His 15-mile round-trip commute uses only electric power, and he rarely engages the gasoline engine. Over a month, he saves $45 in fuel compared to his previous gasoline-only vehicle.

Energy Consumption and Cost Analysis

Charging Method	Voltage	Power (kW)	Charge Time (7.6 kWh Battery)	Est. Cost (12¢/kWh)
Level 1 (Standard Outlet)	120V	1.4 kW	7.5 hours	$0.91
OEM Level 2 Charger	240V	3.3 kW	2.5 hours	$0.91
Public DC Fast Charger	480V	50 kW	30–40 minutes*	$5–$10 (variable)

*Note: The C-Max Energi does not support DC fast charging—only Level 1 and Level 2. This table illustrates the time and cost efficiency of OEM Level 2 charging.

While the energy cost per charge is identical (~$0.91 at 12¢/kWh), the time savings and convenience of Level 2 charging make it far more practical for daily use.

Reliability and Long-Term Durability

• Lifespan: OEM chargers are rated for 10,000+ charging cycles (equivalent to 25+ years of daily use).
• Failure Rate: According to Ford service data, OEM chargers have a <0.5% annual failure rate, significantly lower than some aftermarket brands.
• Maintenance: No regular maintenance is required, but inspect the cable and connector monthly for wear, fraying, or moisture.
• Warranty: Most OEM chargers come with a 3-year/36,000-mile warranty, extendable through Ford’s service plans.

Tip: Store the charger indoors during winter months if installed outside to prevent ice buildup and connector corrosion.

Comparing the OEM Charger to Aftermarket Alternatives

The EV charger market is flooded with options—from budget models under $200 to premium smart chargers over $700. How does the Ford OEM charger stack up?

Price vs. Value: Breaking Down the Cost

• Ford OEM Charger: $500–$700 (retail), including basic installation kit.
• Aftermarket (e.g., ChargePoint Home Flex, JuiceBox): $550–$800, often with app connectivity, scheduling, and energy monitoring.
• Budget Options (e.g., Grizzl-E, Lectron): $200–$350, but may lack UL certification or Ford-specific diagnostics.

While the OEM charger is not the cheapest, it offers unmatched integration with Ford’s hybrid systems.

Smart Features: Where Aftermarket Chargers Excel

Many aftermarket chargers offer:

• Wi-Fi/Bluetooth connectivity
• Mobile app control (start/stop, scheduling)
• Energy usage tracking
• Integration with solar panels or home energy systems

However, these features often come at the cost of reduced reliability and longer troubleshooting times when issues arise. For C-Max owners, the OEM charger’s simplicity and Ford-specific engineering often outweigh the allure of smart tech.

Compatibility and Safety Considerations

• OEM: Guaranteed compatibility with Ford’s battery algorithms, thermal management, and charge termination protocols.
• Aftermarket: May not fully support C-Max-specific charge curves, potentially reducing battery longevity.
• Safety: OEM chargers undergo rigorous Ford testing for overcurrent, overvoltage, and ground fault protection. Some budget aftermarket units have been recalled for fire hazards.

Verdict: For C-Max owners prioritizing reliability, safety, and integration, the OEM charger is the superior choice. For those who want smart features and are willing to manage potential compatibility issues, premium aftermarket models may be worth considering—but only with professional installation and firmware updates.

Future-Proofing Your Charging Setup in 2024 and Beyond

As Ford transitions toward all-electric vehicles (like the Mach-E and F-150 Lightning), the C-Max OEM charger remains a relevant and valuable asset. Here’s how to ensure your setup stays effective for years to come.

Upgrades and Retrofits

• Smart Module Add-Ons: Companies like Emporia offer retrofit kits that add Wi-Fi and energy monitoring to existing chargers—compatible with OEM units.
• Load Management: Install a load-sharing device if you plan to add solar or another EV. This prevents circuit overloads when multiple devices draw power.
• Future-Proof Wiring: When installing, run conduit with extra space for future upgrades (e.g., 6-gauge wire for 50-amp circuits).

Integration with Ford’s Ecosystem

Ford’s FordPass app allows C-Max owners to:

• Monitor charge status (when plugged in)
• Set departure times for pre-conditioning
• Locate public charging stations
• Receive maintenance alerts

While the OEM charger doesn’t natively connect to FordPass, pairing it with a smart energy meter (like Sense or Emporia) can bridge the gap.

Preparing for the EV Transition

Even as Ford phases out hybrids, the OEM charger can be repurposed for future EVs. Its J1772 connector is universal, and its 240V/3.3kW output is sufficient for most plug-in hybrids and entry-level EVs. By investing in a quality OEM unit now, you’re building a foundation for long-term EV ownership—without the need for a complete charger replacement down the road.

Conclusion: Why the Ford C-Max OEM Charger Is the Smart Choice in 2024

The Ford C-Max OEM electric car charger is more than just a charging device—it’s a critical component of an efficient, reliable, and future-ready EV lifestyle. With its factory-engineered design, seamless integration with Ford’s hybrid systems, and proven durability, it outperforms many aftermarket alternatives in real-world use. Whether you’re charging overnight for your daily commute, taking advantage of utility rebates, or planning for your next electric vehicle, the OEM charger delivers unmatched value.

In 2024, as charging infrastructure evolves and energy costs fluctuate, the importance of a trusted, OEM-approved solution cannot be overstated. While smart chargers offer flashy features, the Ford OEM unit prioritizes what truly matters: safety, compatibility, and peace of mind. For C-Max owners, this guide has shown that investing in the OEM charger isn’t just about convenience—it’s a strategic move toward smarter, cleaner, and more sustainable transportation. So plug in, power up, and drive forward with confidence, knowing your charging setup is built to last.

Frequently Asked Questions

What is the Ford C Max OEM Electric Car Charger?

The Ford C Max OEM Electric Car Charger is the original equipment manufacturer (OEM) charging solution designed specifically for the Ford C-Max Energi and hybrid models. It ensures optimal performance, safety, and compatibility with your vehicle’s battery system.

Can I use the Ford C Max OEM charger with other electric vehicles?

While technically possible with adapters, the Ford C Max OEM Electric Car Charger is optimized for Ford’s charging protocols and battery management systems. For safety and efficiency, Ford recommends using it exclusively with compatible C-Max models.

How long does it take to charge a Ford C Max with the OEM charger?

Using the Ford C Max OEM Electric Car Charger (Level 2, 240V), you can fully charge the C-Max Energi’s battery in approximately 2.5 to 3 hours. Charging time may vary slightly based on battery level and environmental conditions.

Is the OEM charger weatherproof for outdoor use?

Yes, the Ford C Max OEM charger is built to withstand outdoor conditions with an IP55-rated weatherproof design, making it safe for use in rain, snow, or humidity. Always store the cable properly when not in use.

Where can I buy a genuine Ford C Max OEM Electric Car Charger?

You can purchase the OEM charger directly from Ford dealerships, Ford’s official website, or authorized parts retailers. Avoid third-party sellers to ensure authenticity and warranty coverage.

Does the Ford C Max OEM charger come with a warranty?

Yes, Ford typically includes a 12-month/12,000-mile limited warranty with the OEM charger, covering manufacturing defects. Check your purchase documentation for specific terms and extended warranty options.
